Summary The YT-1000 Series Positioner, mounted on a pneumatic actuator, moves the actuator

Cut Sheets

APL limit switch 210N APL limit switch 310N electro-pneumati positioner YT1000 range electro-pneumati positioner Locator
Product Specs

Summary

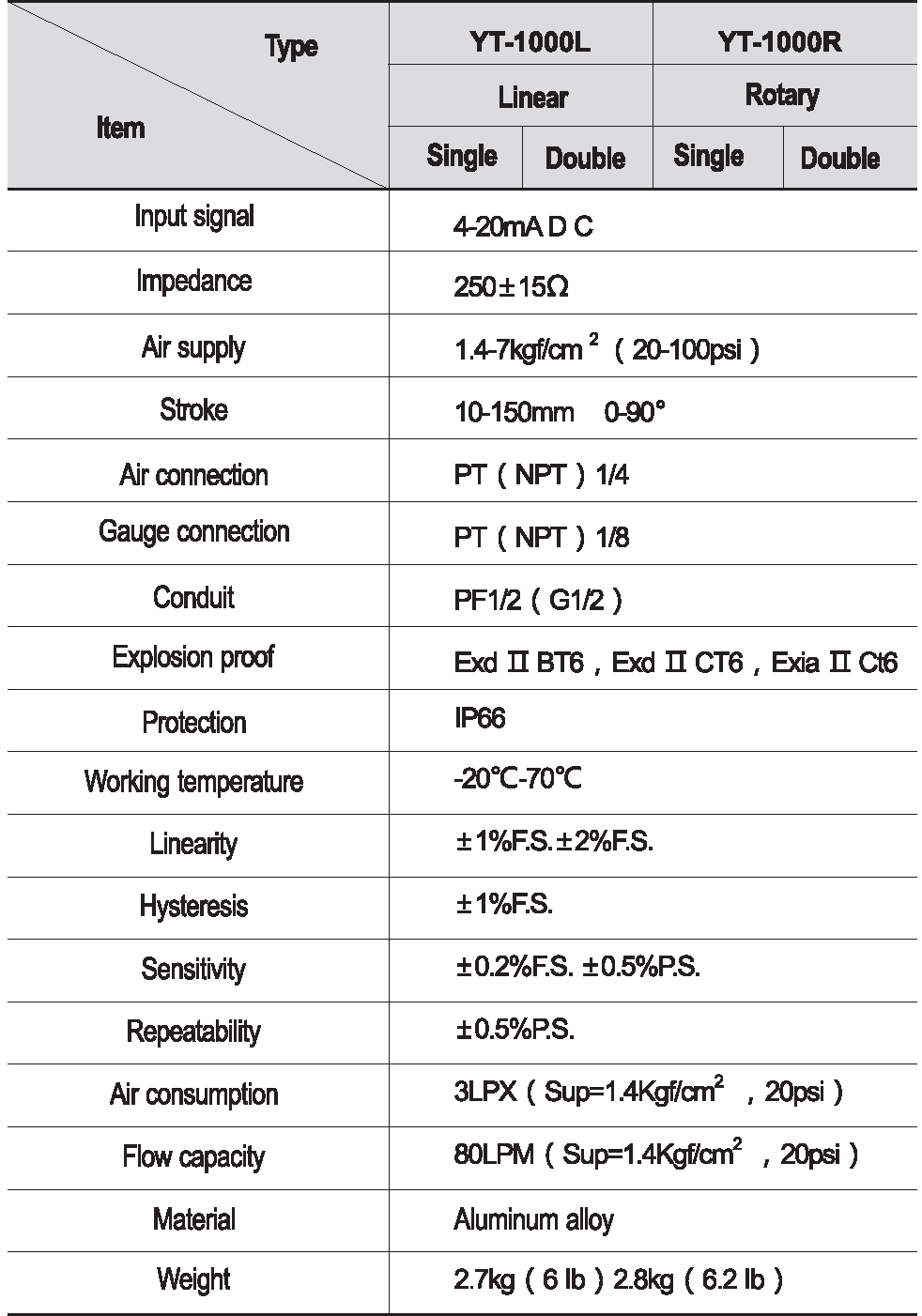

The YT-1000 Series Positioner, mounted on a pneumatic actuator, moves the actuator by receiving DC 4~20mA signals from a controller. Also, the function of detecting and returning the actuator displacement provides accurate positioning in response to DC 4-20mA signals.
The YT-1000 can be used with both spring return and double acting actuators.


Features
Autherization CE authertization
Autherization explosion proof (Exia II CT6, Exd II BT6, Exd II CT6) authertization
Autherization IP66 authertization
High anti-vibration (none effective in 5-200Hz)
The linzing of air duct is perforated form, convenient for the linking in all direction Convenient for the transform of positive action and counteraction 1/2 split range available by simple adjustments without changing parts Easy maintenance
Simple structure for feedback connection
Low consumption



Features and Benefits

  • Compact Design
    The Luobai rack & pinion pneumatic actuator produces linear torque output in a compact design utilizing the same body and end caps for double-acting and spring-return units.
  • Degree of Travel
    The standard angle of rotation is 90°. Luobai actuators feature dual travel stops that provide ± 10° stroke rotation on both the opening and closing phases of the actuator stroke. 110° of travel in a standard 90° actuator!
  • Honed Bore for High Cycle Life
    Extruded aluminum body is internally machined and honed to exact specifications. Honing prevents dry spots from forming within the actuator bore and therefore eliminates premature seal failure—a critical aspect to long cycle-life. All internal and external surfaces are hard anodized for corrosion resistance, with all units permanently lubricated at the factory.
  • High-Cycle Bearings
    Shaft bearings isolate the pinion gear from the housing and support the shaft for high-cycle applications. Many competitive manufacturers do not provide this critical feature.
  • High Cycle-Life Wear Pads
    Pistons incorporate double wear pads (skates) to separate the rack from the actuator wall and serve as both guide and wear bearings.
  • Rugged Tooth Design
    The pinion teeth are engaged the full length and stroke of the piston, and designed for the toughest flow conditions. The pinion height allows manual override without needing to remove the indicator.
  • Multiple Output Shafts
    The female pinion drive is standard with a double-square output drive, and optional with a double-D drive, keyed drive and designs to meet your specific requirements.
  • Namur Mounting
    Namur VDI/VDE 3845 and ISO 5211 dimensions on all sizes. No special blocks are required to mount solenoid valves, limit switches or positioners.
  • High Visibility Beacon
    External open/close indicator as standard, available for all rotations.
  • Safe Preloaded Spring Cartridges
    Epoxy-coated special steel springs are pre-loaded with non- metallic materials. The stainless steel end-cap fasteners are extra-long to allow for spring relaxation. All parts are corrosion-resistant.
  • Alternate Operating Media
    Air pressure operation from 40 to 150 psi (2 to 10 Bar). Water, nitrogen and compatible hydraulic fluids may also be used to power the actuator.
  • Stainless Steel Fasteners
    All external fasteners are corrosion-resistant stainless steel.
  • Optional Accessories
    Luobai offers a wide range of adapters for many different types of valves—including butterfly valves, ball valves and plug valves—as well as a variety of pneumatic and electric automation accessories suitable for diverse industrial environments.
  • Quality Assurance
    100% of all units are factory pressure and leak tested, and individually boxed for shipment.
  • Traceability
    All units are externally marked with a progressive traceable serial number.
  • Best Warranty In The Industry
    Luobai products are covered by our unlimited cycle-life warranty. Contact your local distributor or sales representative for more details.
